How The REV3™ Variable Rate Throttle Works
The REV3™ throttle has several different size reels that will change how much twist is necessary for the throttle to completely open the carbs or throttle bodies on a motorcycle. The larger the reel is, the shorter the twist. Each reel size will shorten the twist by about 10 degrees. If your stock throttle has a 40 mm reel and stock twist is 90 degrees (1/4 turn), the 45mm reel will reduce the twist to 80 degrees and the 50 mm reel will reduce it to 70 degrees. The 35 mm reel will increase the throttle twist to approximately 100 degrees. This is just an example; every model of motorcycle is different.
The included cam reel has a progressive profile that allows the throttle to act like a sensitive, long twist throttle during the initial small throttle openings for precise control and then acts like a more aggressive short twist throttle at large throttle openings, progressively shortening the amount of twist needed to reach full throttle.
Throttle and Cables
Details

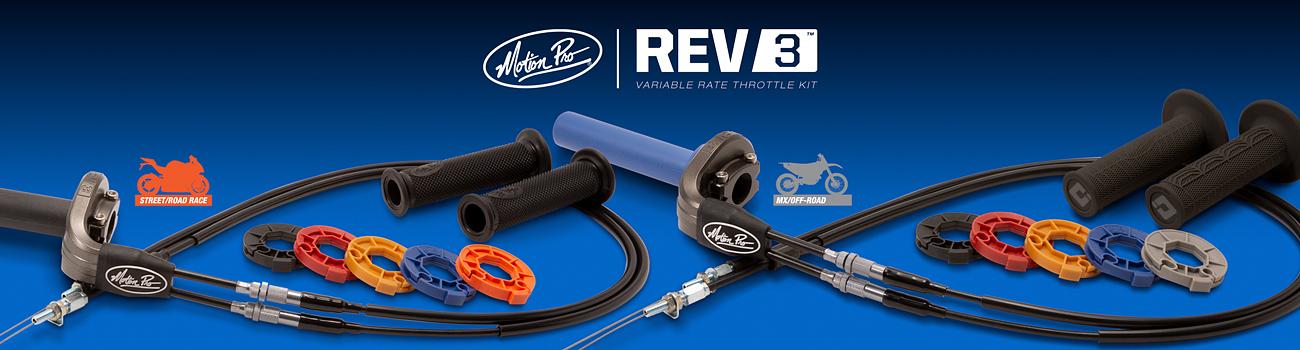

The NEW 3rd generation Motion Pro Revolver variable rate throttle system is here!
- Innovative reel changing system lets you tailor the throttle rate to your preference and riding conditions
- 5 different reels provide perfect throttle response for any condition. Use smaller reels for a slower throttle rate and larger reels for a faster throttle rate. Included cam reel provides progressive throttle response preferred by some riders
- Slim REV3™ throttle housing allows more room for lever clearance and adjustment to the throttle housing position
- Improved throttle stop provides greater strength and durability - Snap-together elbows make it even easier to install and change reels
- Cable boot keeps dirt and dust out for reliable and smooth operation
- REV3™ off-road kits are compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
- Billet aluminum inline cable adjusters ease installation and adjustment
- Lower section of cables use 5 mm housing with PTFE liner for reduced friction, increased routing flexibility, and lighter weight
- Upper section of cables uses 6 mm housing to provide solid support for adjusters
- Simple to install and maintain
- Patented
Kit includes:
- REV3™ throttle assembly with throttle tube (REV3™ off-road kits include the unbreakable Titan Throttle Tube™
- Motion Pro REV3™ black vinyl cables specifically designed for your bike
- REV3™ sportbike kits include Motion Pro RoadControl™ grips (01-1131) and REV3™ off-road kits include Motion Pro DirtControl™ II grips (01-2816)

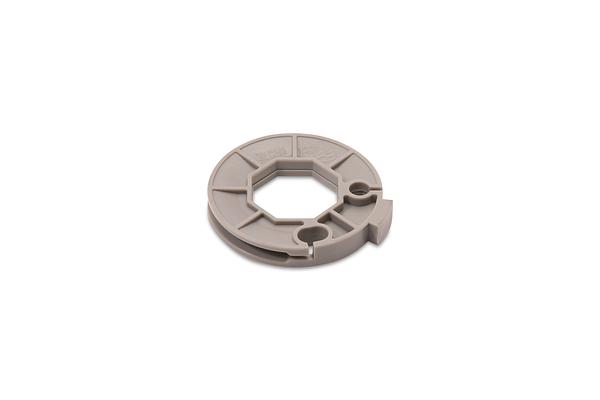

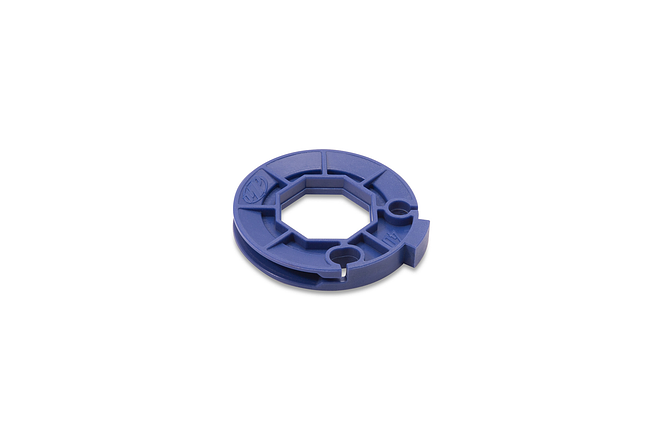

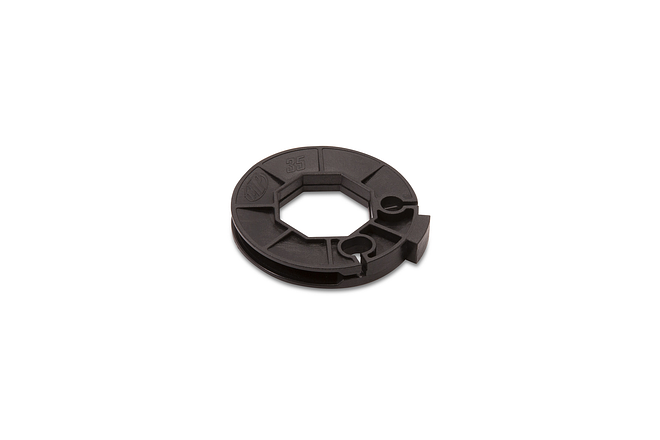

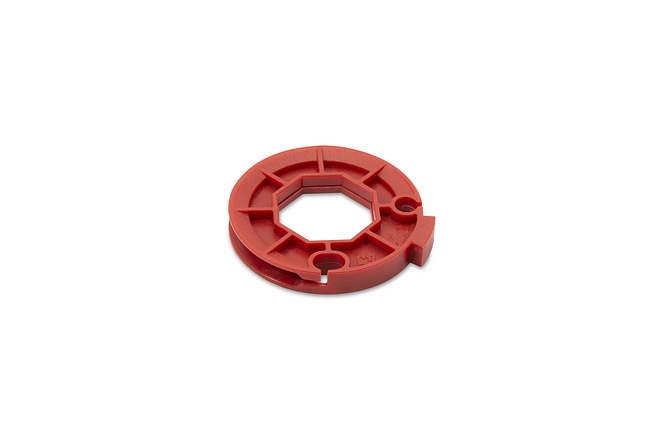

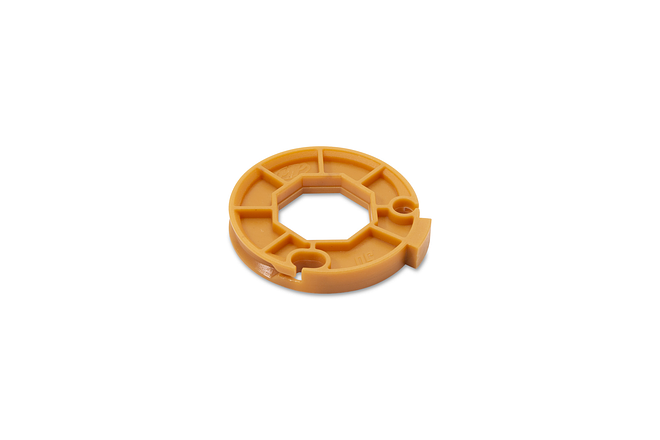

- Four interchangeable round reels: 35mm, 40 mm, 45 mm, 50 mm

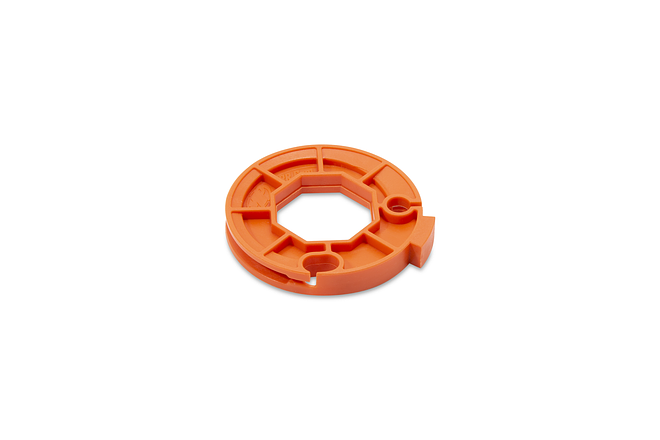

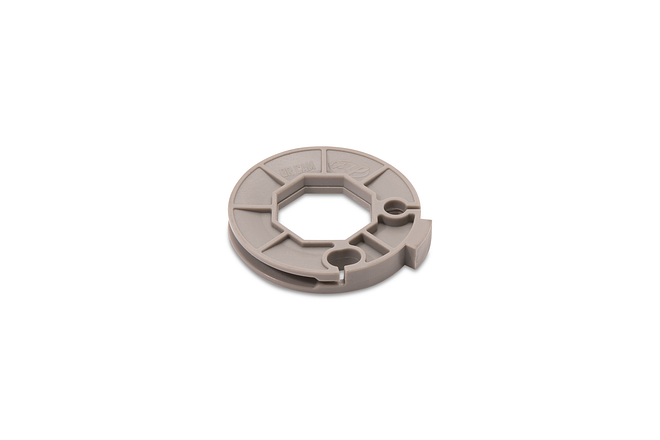

- Progressive cam reel - Sportbike kits include road race profile cam reel (orange) and off-road kits include off-road profile cam reel (gray)
Reel Curve Samples
REV3™ reels are compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
Grips

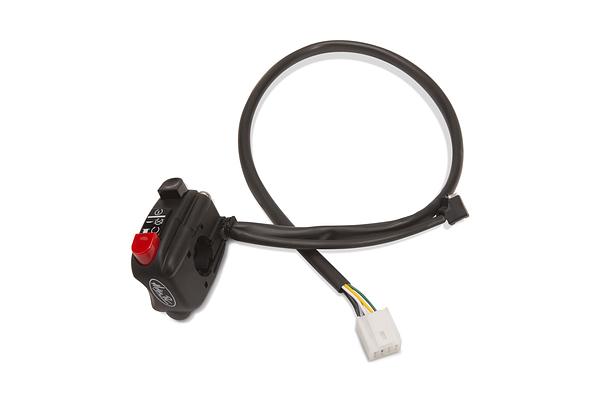

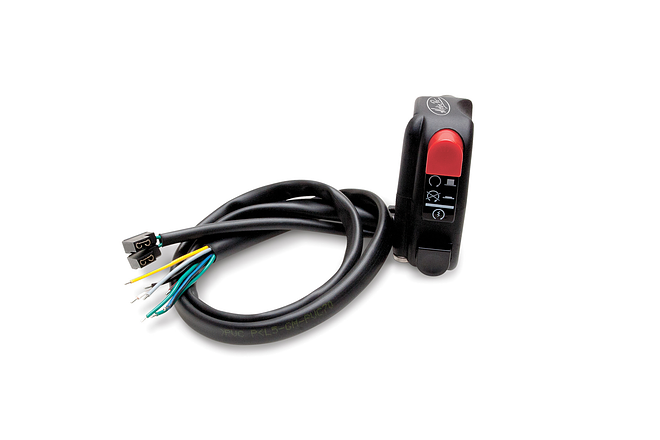

Handlebar Stop/Start Switch
- Required for installation of Rev2 or Revolver Throttle Kit on bikes with ignition and starter switches in stock throttle assembly
- Fits 7/8" bars (22.2 mm)
- Extra narrow design is only 26 mm wide
- Push In/Out engine switch
- Momentary 2 pole starter switch
- Starter switch has 2 separate circuits, one normally open, one normally closed for street bikes that use a headlight/starter cutoff
- 550 mm long wiring harness with brake light switch circuit wiring
- Brake light circuit wiring pigtail 120 mm long with female spade connectors
- Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
- Wiring harness has bare, tinned wires without connector for easy installation of OE connector body
- Made in Italy by Domino
|
Part # 11-0098
$84.99
Add to Wishlist
|

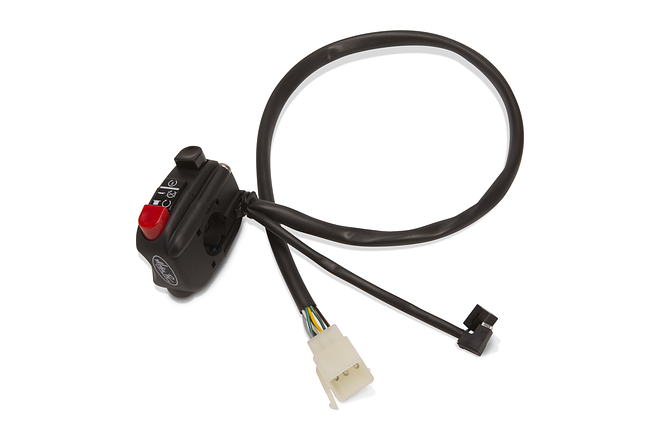

Handlebar Stop/Start Switch, Honda A
- Model specific handlebar switch for use with Rev2 throttle kit on bikes with ignition and starter switches in stock throttle assembly
- Fits 7/8" bars (22.2 mm)
- Extra narrow design is only 26 mm wide
- Push In/Out engine switch
- Momentary 2 pole starter switch
- Model specific design with prewired connector is designed to plug into stock wire harness and duplicate OEM function
- Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
- Made in Italy by Domino
|
Part # 11-0102
$104.99
Add to Wishlist
|

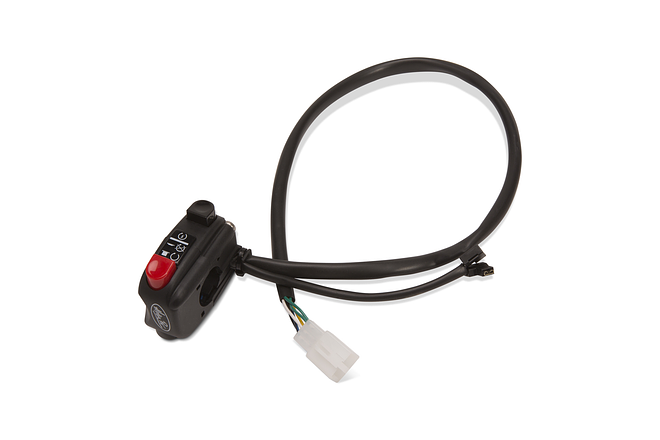

Handlebar Stop/Start Switch, Kawasaki A
- Model specific handlebar switch for use with Rev2 throttle kit on bikes with ignition and starter switches in stock throttle assembly
- Fits 7/8" bars (22.2 mm)
- Extra narrow design is only 26 mm wide
- Push In/Out engine switch
- Momentary 2 pole starter switch
- Model specific design with prewired connector is designed to plug into stock wire harness and duplicate OEM function
- Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
- Made in Italy by Domino
|
Part # 11-0103
$104.99
Out of stock at Motion Pro
This item is unavailable
Add to Wishlist
Add to Wishlist
|

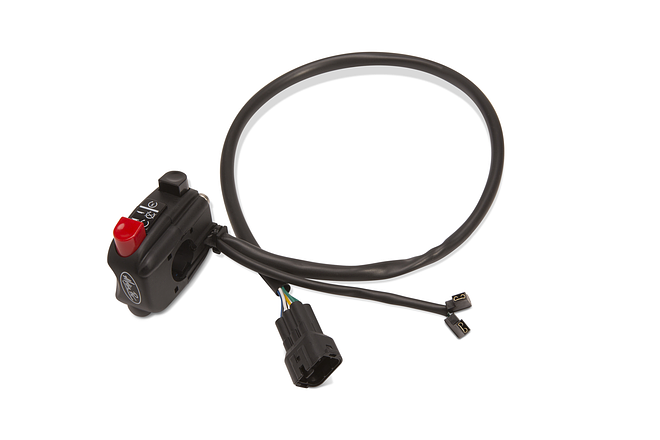

Handlebar Stop/Start Switch, Kawasaki B
- Model specific handlebar switch for use with Rev2 throttle kit on bikes with ignition and starter switches in stock throttle assembly
- Fits 7/8" bars (22.2 mm)
- Extra narrow design is only 26 mm wide
- Push In/Out engine switch
- Momentary 2 pole starter switch
- Model specific design with prewired connector is designed to plug into stock wire harness and duplicate OEM function
- Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
- Made in Italy by Domino
|
Part # 11-0104
$104.99
Add to Wishlist
|

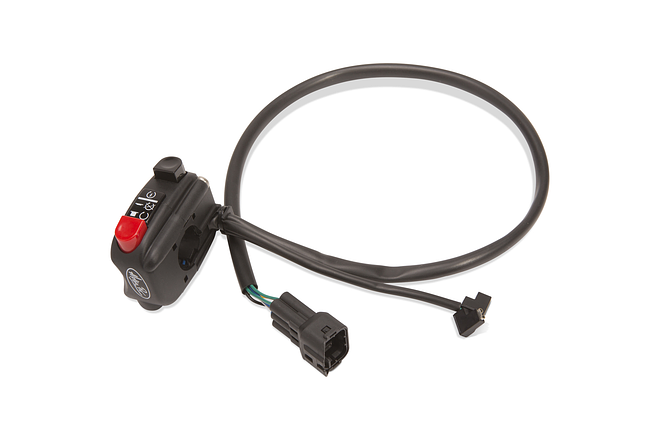

Handlebar Stop/Start Switch, Kawasaki C
- Model specific handlebar switch for use with Rev2 throttle kit on bikes with ignition and starter switches in stock throttle assembly
- Fits 7/8" bars (22.2 mm)
- Extra narrow design is only 26 mm wide
- Push In/Out engine switch
- Momentary 2 pole starter switch
- Model specific design with prewired connector is designed to plug into stock wire harness and duplicate OEM function
- Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
- Made in Italy by Domino
|
Part # 11-0105
$104.99
Add to Wishlist
|

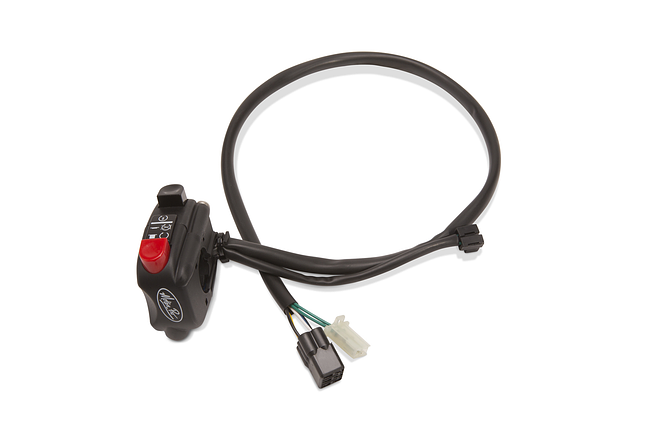

Handlebar Stop/Start Switch, KTM A
- Model specific handlebar switch for use with Rev2 throttle kit on bikes with ignition and starter switches in stock throttle assembly
- Fits 7/8" bars (22.2 mm)
- Extra narrow design is only 26 mm wide
- Push In/Out engine switch
- Momentary 2 pole starter switch
- Model specific design with prewired connector is designed to plug into stock wire harness and duplicate OEM function
- Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
- Made in Italy by Domino
|
Part # 11-0106
$115.99
Add to Wishlist
|

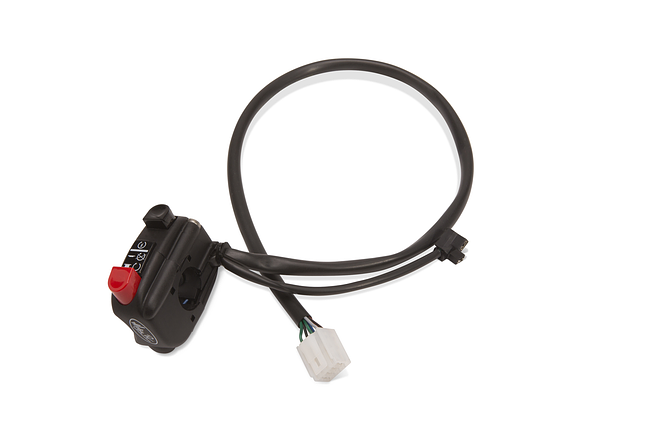

Handlebar Stop/Start Switch, Suzuki A
- Model specific handlebar switch for use with Rev2 throttle kit on bikes with ignition and starter switches in stock throttle assembly
- Fits 2005-2007 GSXR 600-750, 2009-2017 SFV-SV 650, 2005-2006 GSXR 1000
- Fits 7/8" bars (22.2 mm)
- Extra narrow design is only 26 mm wide
- Push In/Out engine switch
- Momentary 2 pole starter switch
- Model specific design with prewired connector is designed to plug into stock wire harness and duplicate OEM function
- Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
- Made in Italy by Domino
|
Part # 11-0107
$104.99
Out of stock at Motion Pro
This item is unavailable
Add to Wishlist
Add to Wishlist
|

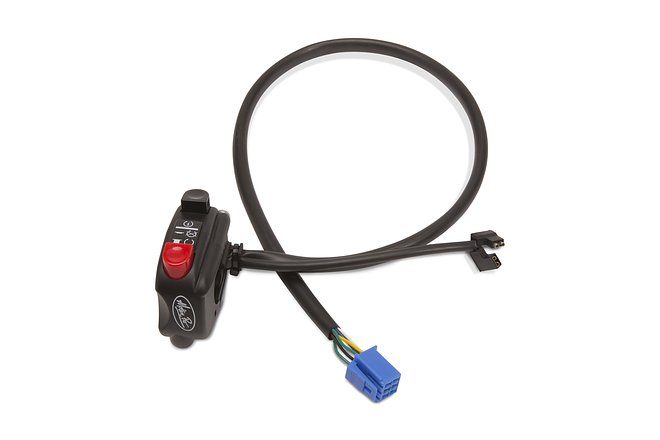

Handlebar Stop/Start Switch, Suzuki B
- Model specific handlebar switch for use with Rev2 throttle kit on bikes with ignition and starter switches in stock throttle assembly
- Fits 2004 Suzuki GSXR 600 and GSXR 750
- Fits 7/8" bars (22.2 mm)
- Extra narrow design is only 26 mm wide
- Push In/Out engine switch
- Momentary 2 pole starter switch
- Model specific design with prewired connector is designed to plug into stock wire harness and duplicate OEM function
- Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
- Made in Italy by Domino
|
Part # 11-0108
$104.99
Add to Wishlist
|

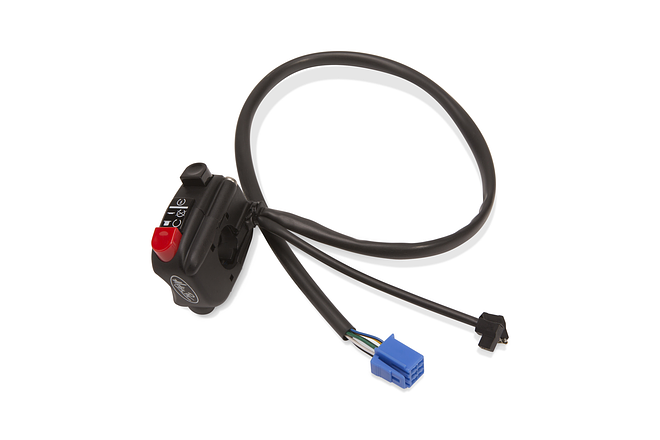

Handlebar Stop/Start Switch, Yamaha A
- Model specific handlebar switch for use with Rev2 throttle kit on bikes with ignition and starter switches in stock throttle assembly
- Fits 7/8" bars (22.2 mm)
- Extra narrow design is only 26 mm wide
- Push In/Out engine switch
- Momentary 2 pole starter switch
- Model specific design with prewired connector is designed to plug into stock wire harness and duplicate OEM function
- Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
- Made in Italy by Domino
|
Part # 11-0109
$104.99
Add to Wishlist
|

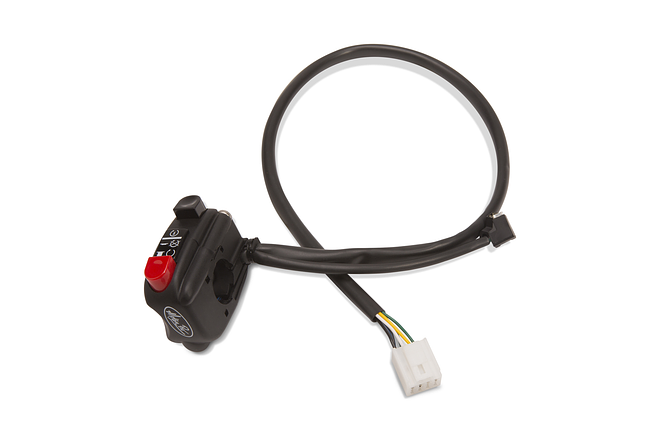

Handlebar Stop/Start Switch, Yamaha B
- Model specific handlebar switch for use with Rev2 throttle kit on bikes with ignition and starter switches in stock throttle assembly
- Fits 7/8" bars (22.2 mm)
- Extra narrow design is only 26 mm wide
- Push In/Out engine switch
- Momentary 2 pole starter switch
- Model specific design with prewired connector is designed to plug into stock wire harness and duplicate OEM function
- Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
- Made in Italy by Domino
|
Part # 11-0110
$104.99
Add to Wishlist
|

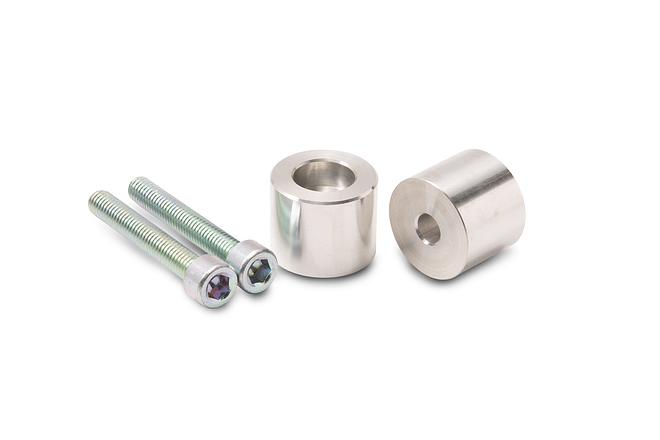

Yamaha R1/R6 Bar Extenders (Pair)
- For use when installing Revolver, REV2™ and REV3™ throttle kits on 2006-2020 Yamaha YZF-R6, 2022 YZF-R6 GYTR (closed course racing model only) and 2002-2019 Yamaha YZF-R1
- Adds 25mm of length to stock handlebars to accommodate the Revolver, REV2™ and REV3™ throttle with the stock bar ends
- Designed for 2006-2020 Yamaha YZF-R6, 2022 YZF-R6 GYTR (closed course racing model only) and 2002-2019 Yamaha YZF-R1 only
- Kit consists of two spacers and two extended length socket head hex bolts
|
Part # 01-1198
$12.99
Add to Wishlist
|

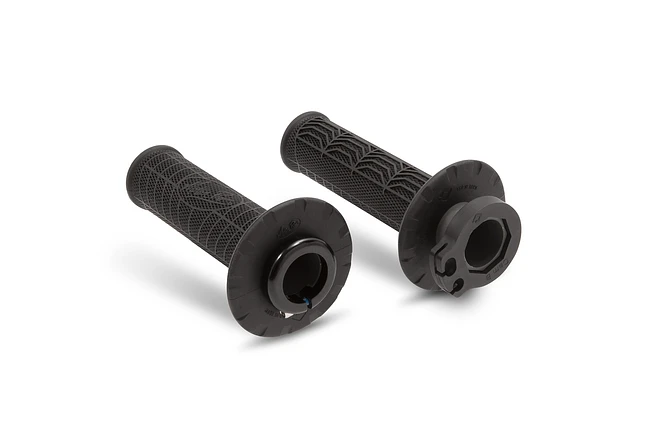

Motion Pro DirtControl™ V2 Lock-On Grips, Black
- V2 Lock-On System provides slip-free performance
- Medium density compound grip
- Motion Pro web pattern and fingertip traction with light knurling
- Secure feel in both wet and dry conditions
- Easy installation and removal that doesn’t require glue – No more waiting for glue to dry!
- Throttle tube features a unique snap on cam system that allows one throttle tube to work with many models and brands
- Kit includes cams for both 2 & 4-stroke applications
- Knockout ends can easily be removed for installing handguards
- Outlasts conventional grips due to no need for safety wire
- Optional cams included: A, B, C, D, J & M
- Available in black or gray
- Unique grip pattern designed by Motion Pro
- Made for Motion Pro in USA by ODI
- Compatible with new Rev3 reels
- Additional cam reels are available
|
Part # 01-2818
$26.99
Add to Wishlist
|

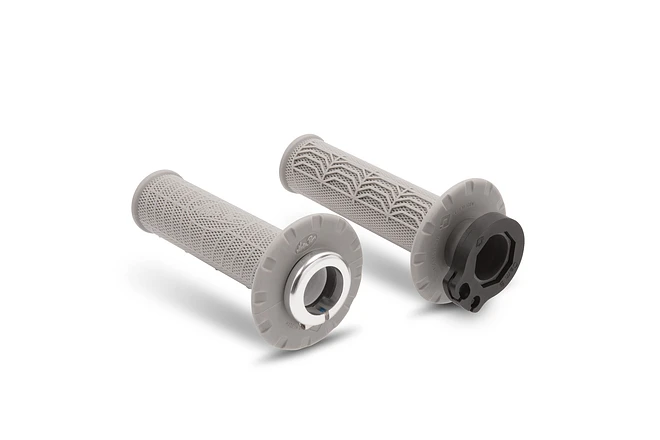

Motion Pro DirtControl™ V2 Lock-On Grips, Gray
- V2 Lock-On System provides slip-free performance
- Medium density compound grip
- Motion Pro web pattern and fingertip traction with light knurling
- Secure feel in both wet and dry conditions
- Easy installation and removal that doesn’t require glue – No more waiting for glue to dry!
- Throttle tube features a unique snap on cam system that allows one throttle tube to work with many models and brands
- Kit includes cams for both 2 & 4-stroke applications
- Knockout ends can easily be removed for installing handguards
- Outlasts conventional grips due to no need for safety wire
- Optional cams included: A, B, C, D, J & M
- Available in black or gray
- Unique grip pattern designed by Motion Pro
- Made for Motion Pro in USA by ODI
- Compatible with new Rev3 reels
- Additional cam reels are available
|
Part # 01-2819
$26.99
Add to Wishlist
|

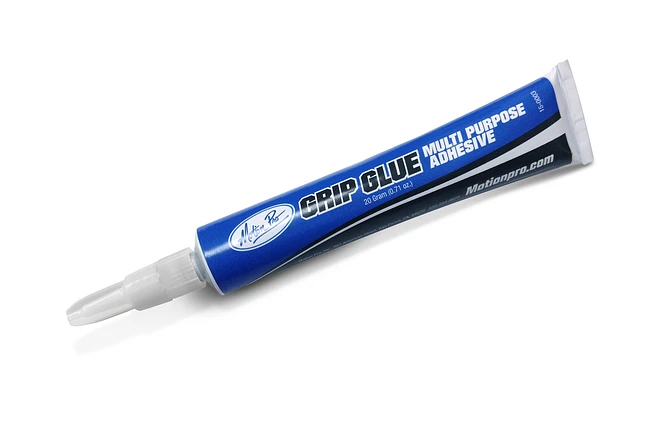

Grip Glue and Multipurpose Adhesive
- Motion Pro engineers and test riders found this formula to be the best grip glue available at any price
- Easy to apply and easy to remove from throttle tube and bars when you change grips
- High cured temperature resistance is compatible with grip heaters
- Set time is not so fast that you have to rush when installing grips, but fast enough so you can get riding right away
- Becomes tacky in 15 minutes at room temperature
- Outperforms rubber cement, acrylics and silicones because it bonds to more surfaces with greater strength and durability
- Also works great as general adhesive for anything that requires a flexible, waterproof bond that won't crack or become brittle.
- Excellent bonding to metal, plastic composites, rubber, leather, vinyl, glass and wood
- Exceptional flexibility, does not become brittle or hard
- Can bond items subject to vibration
- Abrasion resistance makes it great for bonding objects subject to wear
- Waterproof
- 20 gram tube (0.7 ounce) is enough for multiple applications
|
Part # 15-0003
$11.99
Out of stock at Motion Pro
This item is unavailable
Add to Wishlist
Add to Wishlist
|

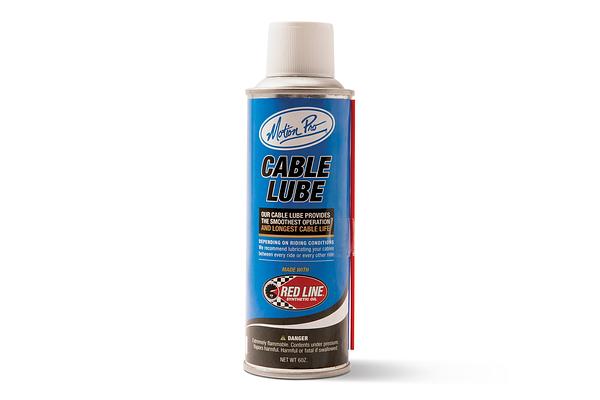

Motion Pro Cable Lube, 6 Oz Can
- Premium blend of Redline Line synthetic lubricant and rust inhibitors provide the smoothest operation and maximizes cable life
- Provides smooth cable operation in all weather conditions and temperatures
- For best results and less wasted lubricant use Motion Pro Cable Luber V3 (Part No. 08-0609)
- Depending on riding conditions, we recommend lubricating your cables between every ride or every other ride
- Formulated by Motion Pro
|
Part # 15-0002
$16.99
Add to Wishlist
|

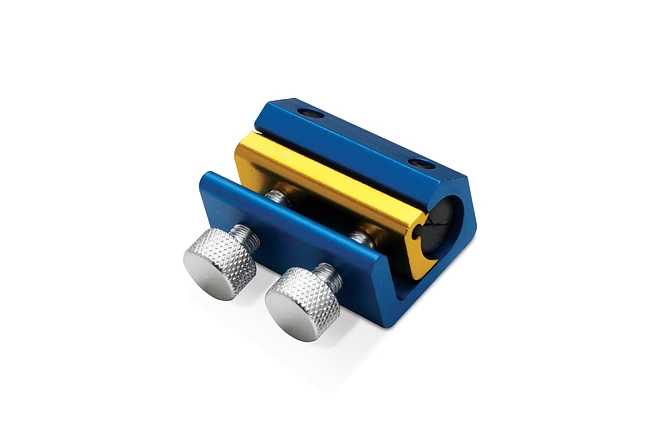

Cable Luber
- Used to inject lubricant into cable housing
- Works on most control cables with 5 mm to 10 mm O.D housing
- Clamps over housing and wire allowing an aerosol can to be connected
- Once lube runs out the far end, the cable is lubricated
- Ideal for use with Motion Pro Cable Lube part no. 15-0002
|
Part # 08-0182
$10.99
Add to Wishlist
|

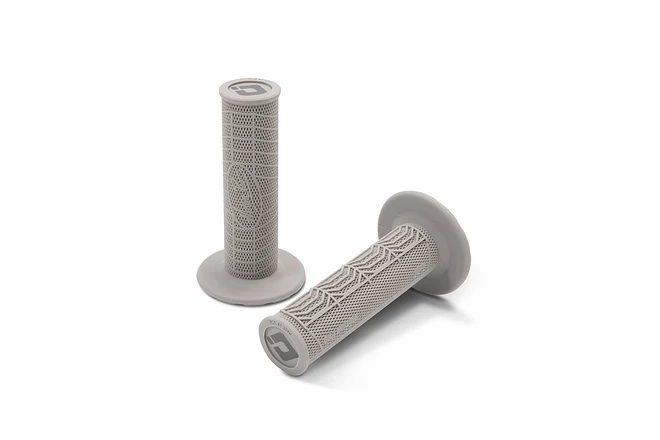

Motion Pro DirtControl™ II Grips, Gray
- Ergonomic design provides excellent comfort and control
- Medium density compound grip
- Motion Pro web pattern and fingertip traction with light knurling
- Secure feel in both wet and dry conditions
- Inner diameter optimized to keep grips secure in any conditions
- Fits 7/8" (22 mm) bars and throttle tubes
- Available in black part no. 01-2816
- Designed by Motion Pro
- Made in USA by ODI
|
Part # 01-2817
$13.99
Add to Wishlist
|

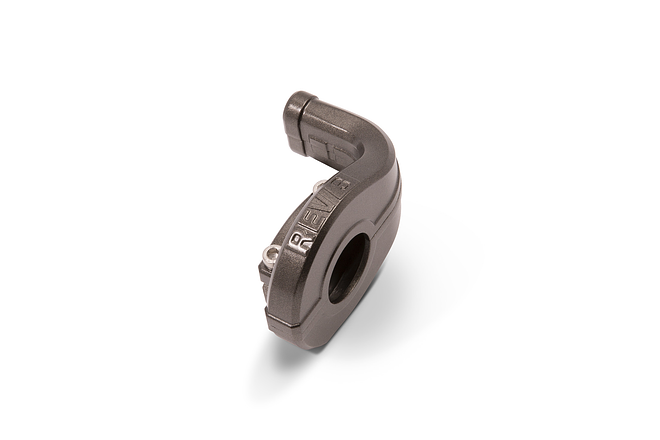

Rev3 housing complete with screws
- Replacement throttle housing for REV3™ throttle kit
- Made from durable cast aluminum
- Can only be used with REV3™ reels and cables
- Works with Titan Throttle Tube part no. 01-1298
- Patented
|
Part # 01-1320
$39.99
Add to Wishlist
|

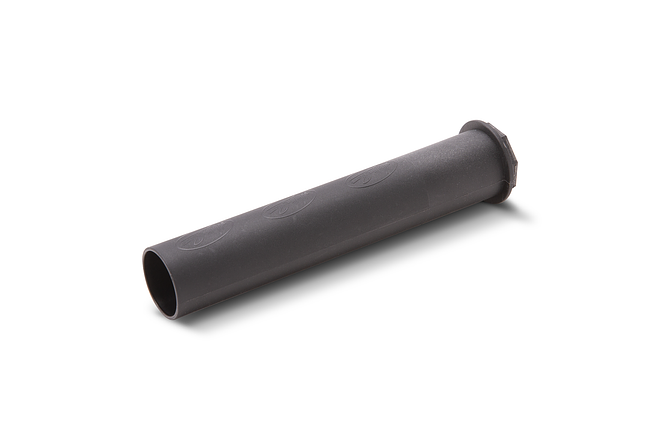

Rev3 Throttle Tube - Street
- REV3™ Street/Road Race throttle tube replacement
- Durable Nylon fabric composite material
- Open end
|
Part # 01-1321
$8.99
Add to Wishlist
|

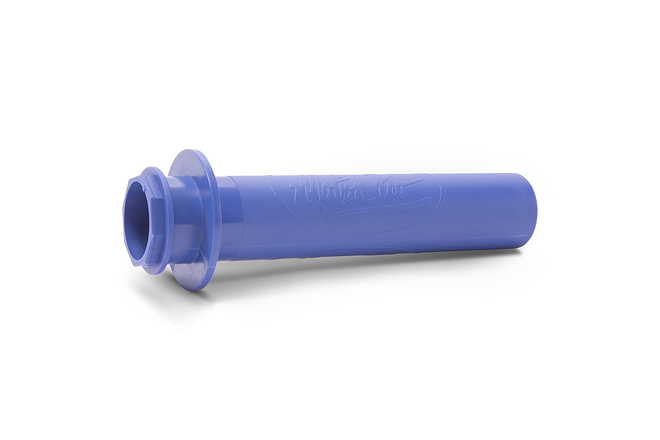

Titan Throttle Tube™
- Tube is designed to work with OEM removable reels and OEM housing
- OEM reels not included
- Fits REV3™ throttle housing and reels
- Designed for the rigorous demands of motocross
- Tougher and more resilient than aluminum tubes
- Will not deform and seize upon a hard impact like aluminum tubes can
- Proprietary low-friction material provides smooth operation and eliminates galling
- No irritating and uncomfortable vibration like aluminum tubes
- Higher performance than aluminum tubes at a much lower cost
- Lifetime limited crash warranty - If it breaks due to a crash or tip over we will send you a new one!
- The Titan throttle tube has a non removable end cap. Modification of this product voids warranty
|
Part # 01-1298
$21.99
Add to Wishlist
|
Rev3 Reel - 35mm, Black
- Replacement 35 mm reel for REV3™ throttle
- Unique lightweight design
- High wall keep cables securely on reel
- Color coded and marked for easy identification
- Heavy-duty nylon composite for increased strength and smooth operation
- Compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
|
Part # 01-1323
$4.99
Add to Wishlist
|
Rev3 Reel - 40mm, Blue
- Replacement 40 mm reel for REV3™ throttle
- Unique lightweight design
- High wall keep cables securely on reel
- Color coded and marked for easy identification
- Heavy-duty nylon composite for increased strength and smooth operation
- Compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
|
Part # 01-1324
$4.99
Add to Wishlist
|
Rev3 Reel - 45mm, Red
- Replacement 45 mm reel for REV3™ throttle
- Unique lightweight design
- High wall keep cables securely on reel
- Color coded and marked for easy identification
- Heavy-duty nylon composite for increased strength and smooth operation
- Compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
|
Part # 01-1325
$4.99
Add to Wishlist
|
Rev3 Reel - 50mm, Yellow
- Replacement 50 mm reel for REV3™ throttle
- Unique lightweight design
- High wall keep cables securely on reel
- Color coded and marked for easy identification
- Heavy-duty nylon composite for increased strength and smooth operation
- Compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
|
Part # 01-1326
$4.99
Add to Wishlist
|
Rev3 Street Cam Reel, Orange
- Cam Profile for the REV3™ Street/Race Throttle Kit
- Bright orange color for easy identification
- Progressive cam profile acts like a small diameter reel at low throttle openings, and a more aggressive large reel at openings beyond 40-50%.
- Sensitive control for small throttle openings for best feel, more aggressive at large openings for faster acceleration.
- Advantage for both the expert rider looking for the best feel at the limit, and the less experienced rider, who needs a softer feel at low throttle openings for smoother control
- Included with every Rev3 Street Throttle Kit
- Compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
|
Part # 01-1327
$4.99
Add to Wishlist
|
Motion Pro DirtControl™ II Grips, Black
- Ergonomic design provides excellent comfort and control
- Medium density compound grip
- Motion Pro web pattern and fingertip traction with light knurling
- Secure feel in both wet and dry conditions
- Inner diameter optimized to keep grips secure in any conditions
- Fits 7/8" (22 mm) bars and throttle tubes
- Available in gray part no. 01-2817
- Designed by Motion Pro
- Made in USA by ODI
|
Part # 01-2816
$13.99
Add to Wishlist
|
Rev3 Off-Road Cam Reel
- Off-road cam profile for the REV3™ Throttle
- Gray color for easy identification
- Progressive cam profile acts like a small diameter reel at low throttle openings, and a more aggressive large reel at openings beyond 40-50%.
- Sensitive control for small throttle openings for best feel, more aggressive at large openings for faster acceleration.
- Good for many conditions, including low traction mud or sand, where initial throttle opening is sensitive for good feel. Reduced on-throttle "hit" of powerful motocross bikes for better control, but maintains an aggressive throttle feel at larger openings.
- Included with every Rev3 Off Road Throttle Kit
- Compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
|
Part # 01-1328
$4.99
Add to Wishlist
|
Warranty
One Year Limited Warranty:
Motion Pro products with a one year limited warranty are guaranteed against defects in materials or workmanship only for one year from the date of purchase and this guarantee is limited to repair or replacement of the product only and to the original purchaser only. Call Motion Pro warranty department at 650-594-9600 to get an RGA number before returning product. Send product back to Motion Pro Warranty Department, 3171 Swetzer Rd, Loomis, CA 95650 for inspection with RGA number clearly noted on outside of box or in letter inside box. Include note with product clearly stating claimed defect, proof of purchase, and your contact information. Motion Pro reserves the right to inspect and determine if a product is defective and that product was not subject to misuse. Consumers outside of the USA must contact the store where they purchased the product from to obtain warranty return and service directions for their country and location. Above is the customer’s exclusive remedy. The above is expressly in lieu of all other warranties express or implied and of all other obligations or liabilities. In no event shall Motion Pro, Inc. be liable for any incidental or consequential damages arising from the breach of any warranties, improper use, the failure to deliver, delay in delivery, delivery of non conforming parts or any other breach of contract or duty.
If you have addtional questions regarding our warranty please contact our warranty department directly via our contact form or email us at warranty@motionpro.com.
